I'm new to Apex. I'm making a sketch on the surface of a part and I can't get the sketch to be finalized/saved. As soon as I close the geometry tools the sketch disappears.

0 dglaser over 5 years ago

I finally found the sketch surfaces that I made, but they were located associated with a different part than the part on which I made the sketches.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Darrel Sinclair over 5 years ago

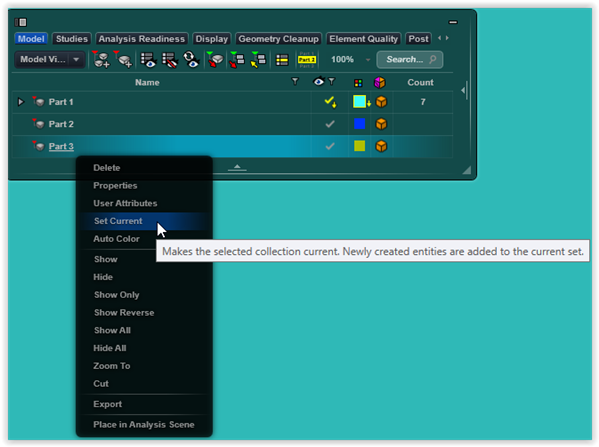

Apex has the concept of a "current part", which is the part that newly-created stuff gets placed in. The current part has its name underlined in the model tree. You can make a part current by right-clicking on it and selecting "Set Current":
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 dglaser over 5 years ago

Thank you, that worked. I've encountered "current part" in the tutorials, but I though it referred to the version of a particular part.
