How to envelope frequency response analysis output?

I have stress, strain, etc... for a group of elements at each natural frequency mode. I would like to envelope frequency-wise a specific output for each element in the domain. Is it possible to do that?

I guess this is related to the possibility of creating envelope across load cases even though a bit different. I know that currently is not possible to envelope across load cases, but what about same load case, across multiple frequencies?

0 Sandip Patil 7 months ago

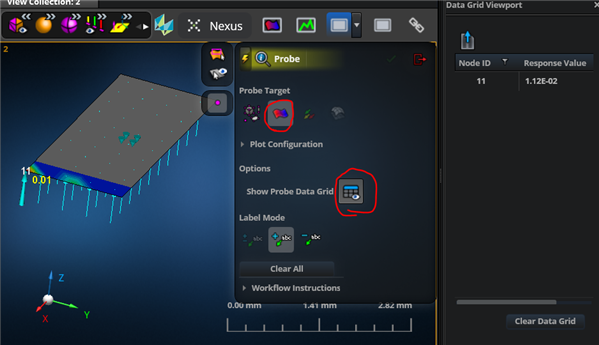

Currently, you can use 'Probe Tool' to see/export results at particular location.

So you can probe result for each frequency for given locations (node or element) and export it into csv file.

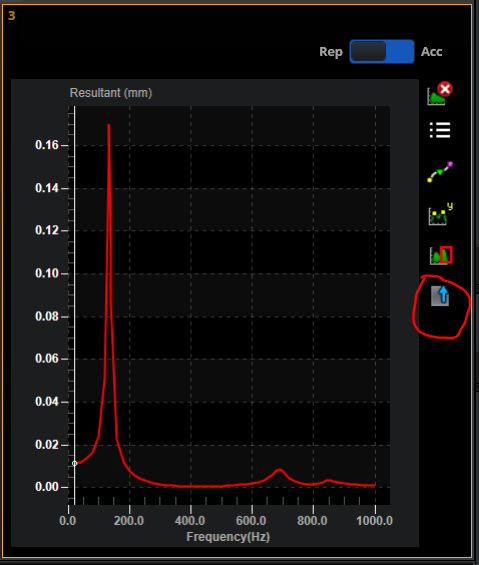

Secondly, you can post graph which post result for particular location. (result vs frequencies)

We can export the graph data in csv as well.

So, we can compare the the data in same load case across multiple frequencies.
