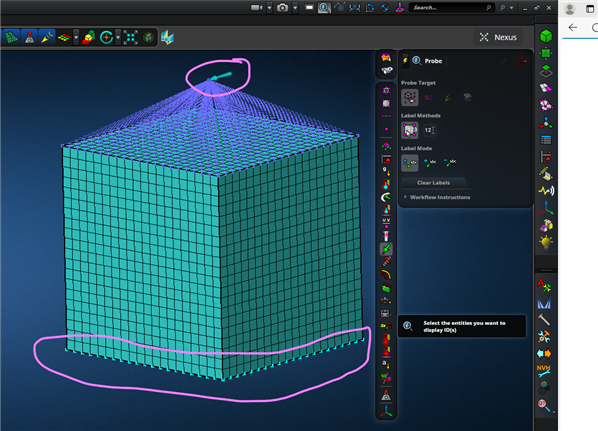

I have tried but i cant able to figure out. I want to display the magnitude of the force at the top arrow location (ex. 100N) and i want to display the constrained dof at the bottom (ex. 123).

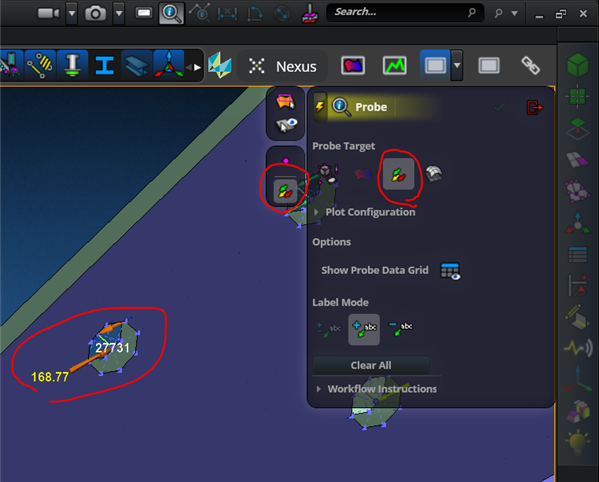

While you are in Pre-Processing, application does not display the magnitude of force by default in viewport. You need to use the probe tool anyhow to view the same.
Thanks for your answer. can you please show a screenshot in pre-processing. because, when i try to display the magnitude using probe tool its only displays the id of the force.
Yes. You are correct. With the probe tool you can check the ID only in Pre-Processing. For magnitude you have to check the properties of that particular force.
.
