Hi community forum
I am using MSC Apex to create .bdf mesh for neutronic simulation on PHITS. I would like to know how to edit the third column on the CTETRA lines directly on MSC Apex. This column is used to group mesh cells into a 'body' in my neutronic software.
Thank you
Alexander Fikri You need to create solid element property and assign it to elements.
Follow below steps>>
1. Create material.

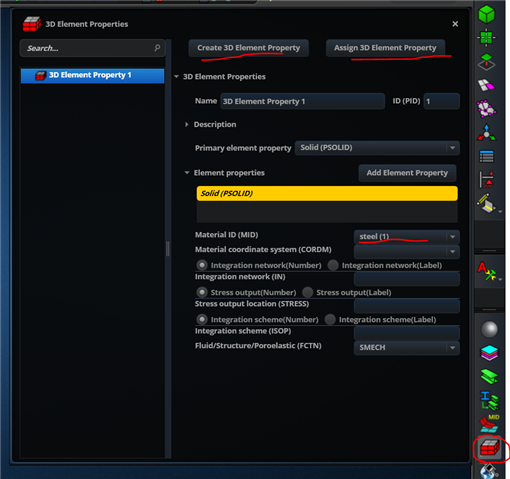

2. Go to, 3D element properties >> Create 3D element properties >> Select Material >> Assign 3D element property >> Select Mesh / Solid.
3. Then export bdf from study scenario.
