Hi MSC Apex Forum

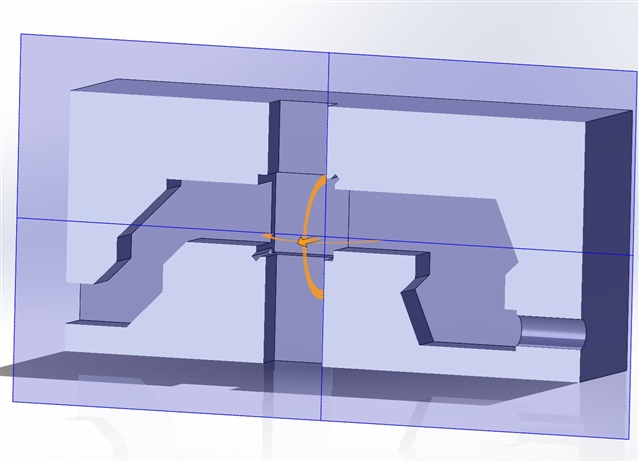

How do I create a section view on MSC Apex like on the image below. Its a section view of the model in Solidworks
I want to mesh a model with a lot of internal channel in MSC and I need to seed some of the internal edges
Thank you
Hi MSC Apex Forum
How do I create a section view on MSC Apex like on the image below. Its a section view of the model in Solidworks
I want to mesh a model with a lot of internal channel in MSC and I need to seed some of the internal edges
Thank you
MSC Apex does not yet have section view in preprocessing (it does in post). However, you can get what you need by hiding faces on you model.

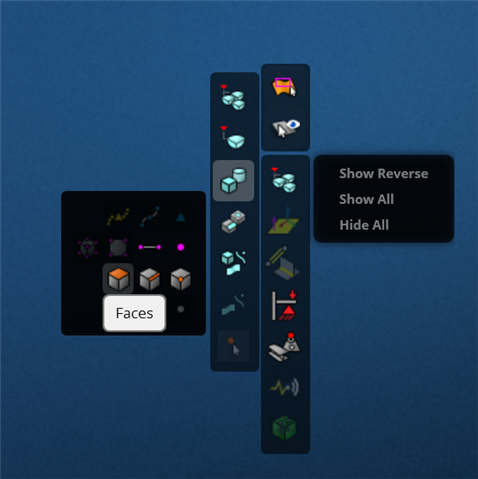

1. With no tool open, right click in the viewport, then set the pick filter to Faces as shown.
2. Right click on faces you want to hide and hide them.
3. Open Mesh Seeding and seed as you normally would.
4. Right click and click Show All.
