Nastran SOL 400 error

lagae over 2 years ago

I am running a rubber seal using sol 400.

Before the entire model run, I made a small model.

there is two rigid body which is surface and deformable body which is mesh.

I applied the Position condition(moving condition) to the Rigid body.

the fatal below occured

*** SYSTEM FATAL MESSAGE 8109 (MCN1INIS)

Error encountered while sending DISTRT data to the 3D Contact Component

0FATAL ERROR

Could you kindly give me some advice?

For reference, I attached the bdf file

thanks

Attached Files (1)

dream_L234_RHDv11.bdf.zip

0 zhong.qin over 2 years ago

The error message indicates that rigid body 3 (Grommet) with the specified position cannot contact with any deformable body. It failed contact check. I removed the displacement specified for body 3 in the attached deck. The job can run now.

Attached Files (1)

dream_L234_RHDv11.bdf.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 lagae over 2 years ago

Hi

After I removed the displacement, my file is runnig.

thank you

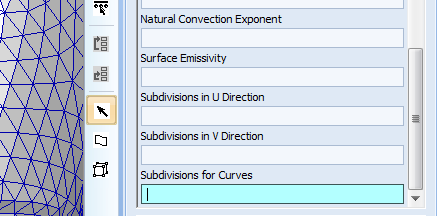

Do you know the subdivisions in U direction, subdivisions in V direction, subdivisions for V direction as shown below?

this appears on the rigid body on the sol400.

when I didn't input any value in these subdivisions,

Fail below occurred.

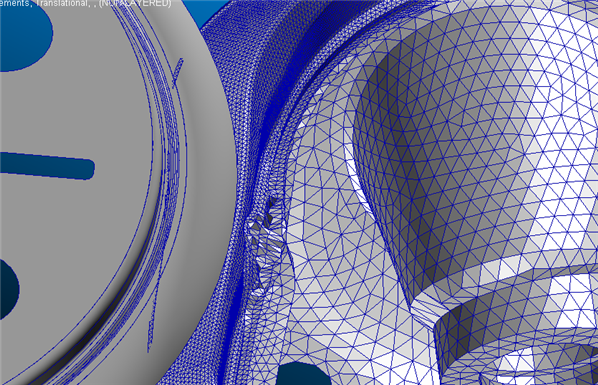

Could you kindly let us know what the subdivision means?

thanks
