Force outputs (plotting)

Hello,

Is it possible to plot the grid point forces for a model in SOL101? So far I 've only managed to print them. Changing the option from GPFORCE(PRINT) to GPFORCE(PLOT) does nothing.

Also, is it possible to prin thet contact forces acting on one of two contacting bodes in particular?

Thanks in advance,

Josef K.

0 karlR over 2 years ago

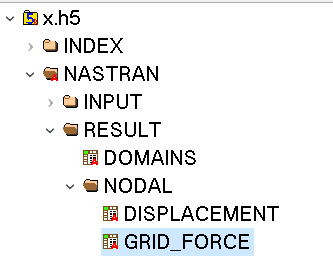

yes, sure, check the f06 for the output "NAME OF DATA BLOCK WRITTEN ON FORTRAN UNIT IS OGPFB1" or a hdf for the datagroup GRID_FORCE
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 karlR over 2 years ago

example below

Attached Files (1)

gpforce.bdf.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Josef K. over 2 years ago

Thank you! However, I am more interested in beeing able to see them in countour through a post-processor. The (PLOT) option should allow me to do that but for some reason it doesn't seem to work.

P.S. I'm currently trying to output the results in an .op2 file (hence the need to plot the results)
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Vivek Bhardwaj over 2 years ago

You can plot the gpforces in Patran using free body tool, which is available in results menu.

To print the contact outputs use: BOUTPUT(PRINT)=ALL
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 vinay.kadambi over 2 years ago

Attached MyFreebody_revb.pdf shows how to plot Freebody force in Patran.

Attached Files (1)

MyFreebody_revb.pdf
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Josef K. over 2 years ago

Thanks!
