How to model fibers in a 3D geometry

Hello Community,

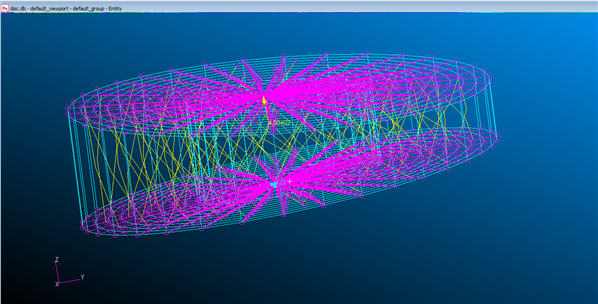

I am trying to add fibers to a disc geometry. I used CBAR elements to model them, but it seems like these elements cannot be tension only.

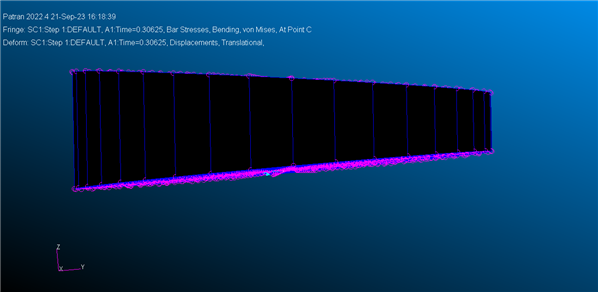

After running the model with CBAR elements, the Bar Stresses, Axial seem empty. Does anyone know why that happens? I have attached the BDF file for more investigation.

Also, is there an option to model tension-only elements?

What is the best approach to model individual fibers for Nastran SOL400?

Attached Files (1)

disc2.bdf.zip

0 J_Knuth over 1 year ago

CROD has only tension and torsional stiffness if that's what you're after.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Hamed Hani over 1 year ago

Do you have an example of using CROD with tension only property in a model?

Thanks!
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Sanjay Patel over 1 year ago

Yes, There is no Tension Only element MSC Nastran.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Hamed Hani over 1 year ago

MSC Nastran documentation says otherwise:

https://nexus.hexagon.com/documentationcenter/bundle/MSC_Nastran_2023.3/page/Nastran_Combined_Book/refman/appC_nonlinear/TOC.Nonlinear.Elements.xhtml
