Currently, ODYSSEE A-Eye proposes an example of customization using the 3D step files: CNC QUOTE.
You can use it as a template to define your updated customization:
Open the ODYSSEE A-Eye launcher. Go to the “A-Eye Manager” tab and click on the “Run A-Eye Manager” button.

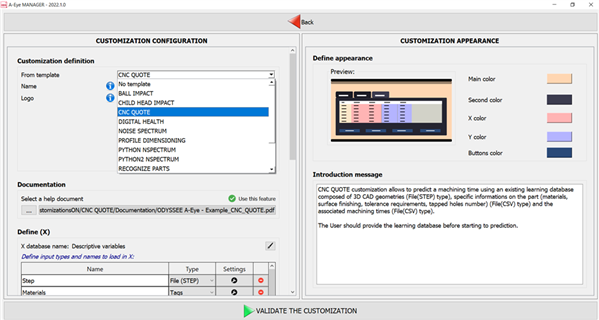

In the A-Eye Manager interface, go to “CREATE CUSTOMIZATION” to enter the configuration customization window. In the first part, click on "From template" drop down menu to select the “CNC QUOTE” customization. (See the attached screenshot)
Change the name of the customization, the logo and documentation file.
Go to “Define (X)”. Keep the “STEP” line and add, update, or delete the other descriptive variables.
Also, update the “Define Y” part.
Leave the additional files in the customization.
They are related to the processing of STEP. Finally, validate the customization.
