Solve with Marc

ron.kunz over 7 years ago

Dear all,

I have multiple models created in Patran. I have the abilitiy to solve with Nastran but I don`t have Nastran Sol400.

Is it possible to create a complete model with contacts in Patran and solve it with Marc?

Because I have enough tokens to solve in Marc and Marc has the ability to solve non-linear and contacts.

Thanks in advance.

0 karlR over 7 years ago

Yes, you can use the Marc-Preference under "Preferences/Analysis". Use "Mapping Functions" to switch a preferenece from Nastran to Marc. Nevertheless not all Nastran data are translated to Marc automatically, you have to check your model after the switch.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 ron.kunz over 7 years ago

Thank you KarIR,

Analysis code is indeed switched to MSC.Marc. Where can I find this Mapping Functions option you are speaking about?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 karlR over 7 years ago

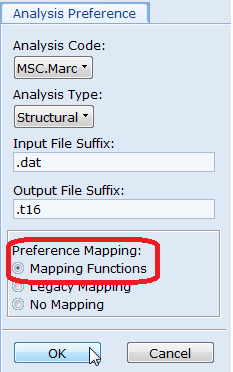

Here:
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 karlR over 7 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 ron.kunz over 7 years ago

Yes at first it wasn`t available so one has to switch to Nastran again and back.

This setting can also be done AFTER the model in Patran has been completed/prepared?

Because I got a message about element type is not chosen?

*** error - no element types chosen and no substructure input
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 ron.kunz over 7 years ago

In addition: This is just a testcase which runs in Nastran and then I do not get this errormessage but the model is fully converged.
