Is there a way to show attached (adjacent) element in Patran. For instance if I am showing MPC in model and I would like to see which nodes/element I have it connected to, can I show the attached nodes/ element elements of that MPCS

shaheer.iqbal over 6 years ago

I have used the feature of "Mask adjacent element OR Show attached elements" in other software such as Hyper mesh.

Basically I would like to do the following

1) Hide the attached elements/nodes for which my MPCs are connected.

or

2) Select the elements only by face.

Thanks in Advance

0 Sanjay Patel over 6 years ago

Hi Shaheer,

You can do this by Group Extend Functionality under Utilities menu and doing Boolean operation on Group. Place the MPC in a group then use the GROUP extend on that group.

I hope this helps.

Thanks.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 karlR over 6 years ago

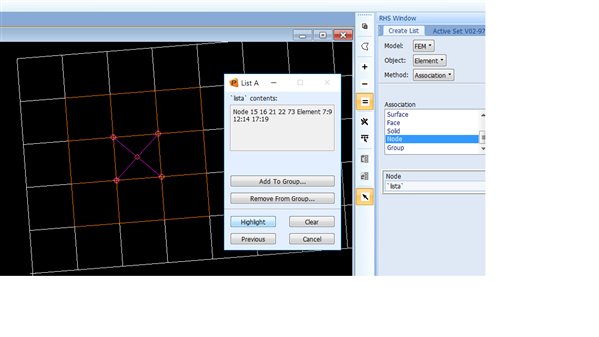

Optional you can use Tools/List/FEM-Node-Association/MPC - "Select your MPC" and

Tools/List/FEM-Element-Association/Node - "insert `lista` "

to get a list of attached nodes and elements. With the "Highlight" Button you can show them.
