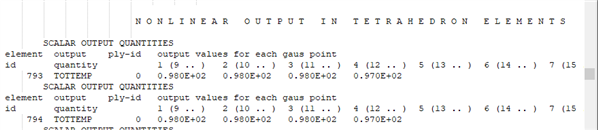

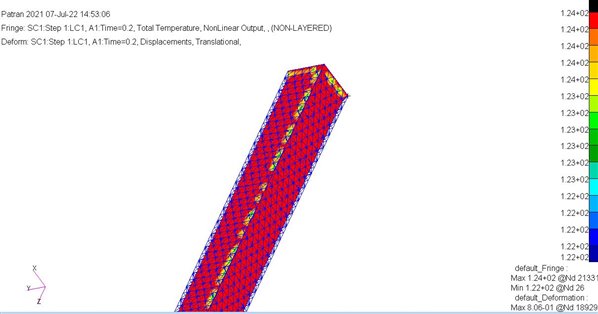

Hello i have rubber model of silentblock using sol400, my first load step is static, where is defined initial temperature 150 degs and nodal temperature at time 1 (20 degs). From disp. results it looks like model is working (silentblock is shrinking) but is possible to post process as fringe this temp decrease.
We have same model in marc, there is this possible to postprocess this temp decrease without problem, but i can not figure how to do it in patran.
Thanks
Jozef
