What does function bv_create_gap_elements do? What arguments does it take?

adam.narozniak over 1 year ago

What does function bv_create_gap_elements do? What arguments does it take?

0 Darrel Sinclair over 1 year ago

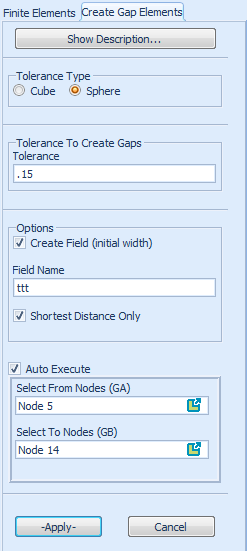

This is a function called by one of the Patran utilities: Utilities/FEM-Elements/Create 1D Gap Elements.

"This form can be used to create gap/bar elements between all selected nodes with coordinates within tolerance."

Arguments correspond to the entries on the form:

From Nodes

To Nodes

Tolerance Type

Tolerance

Options

Field name

bv_create_gap_elements( "Node 5", "Node 14", 2, 0.15000001, [1, 0, 0], "ttt", bv_f_create_gap__n_gaps_created )
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 adam.narozniak over 1 year ago

Thank you!
