Folder selection using ui_file_create

I would like to select a folder PCL methods, I have used "ui_file_create" but its selecting only the files. Please suggest a method to select the folder.

0 Arthur Hickson over 8 years ago

Hi,

you use the ui_file_create and query it for the directory the files are currently listed for, rather than the file selected. e.g:

ui_wid_get( file_select_wdgt, "DIRECTORY", dirname )
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Boobalan over 8 years ago

Hi,

Thanks Arthur, But this method works only if there any files in the folder. File dialog is accepting only the file names and I am not able to select the folder in the window.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Arthur Hickson over 8 years ago

Hi,

I am uncertain what you mean,

I attach a test function you can compile and run. (not very elegant but serves as an example).

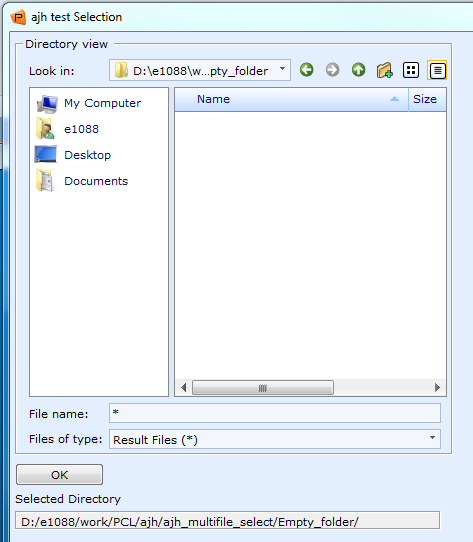

I have a folder with no files in it called "Empty_folder"

I double click this so it becomes the "look in " folder and you see no files listed.

Then clicking the "OK" button retrieves the folder name, dumps it out and writes it to the Selected Directory text box.

Attached Files (1)

ajh_testfile.pcl.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Arthur Hickson over 8 years ago

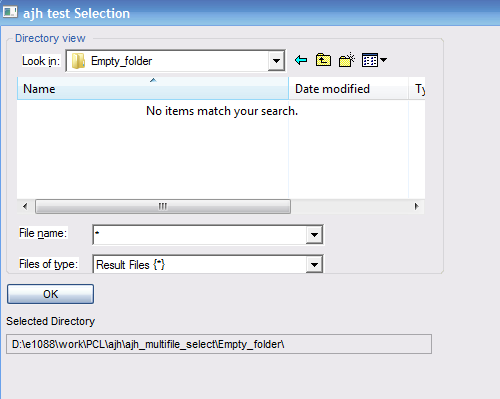

I was running that in the new Patran 2017,

but just in case I ran it in 2016 to get the similar picture:
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Boobalan over 8 years ago

I have tested the script in PATRAN 2013 & 2017 and its not providing the empty folder name. Please suggest.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Arthur Hickson over 8 years ago

Note: I reran my test in Patran versions 2012, 2013, 2014, 2016, 2017 and it worked similarly in each.

You must open the folder(double click) so that it becomes the "Look in:" directory (not just highlighted in the list view, single click) and its content (nothing if empty) is listed.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Boobalan over 8 years ago

Hi Arthur,

I am running the file using below method and still am getting the same error. Please suggest.

!! LIBRARY ajh_multifile_select.plb

ajh_testfile.init()

ajh_testfile.display()
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Arthur Hickson over 8 years ago

Hi Bala

, please send me the session file output from when you do the !!... onward

it should look something like:

!!LIB ADD ajh_multifile_select.plb

ui_exec_function("ajh_testfile","display")

$# STRING dirname[2000] = "D:\e1088\work\PCL\ajh\ajh_multifile_select\"

Note this last $# comment si the output from hitting the OK button on the test form.

Also what system/OS are you running? Use my direct email if you prefer.

I need to see the error you are getting in as much detail as possible.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Boobalan over 8 years ago

It's working fine when I place the plb file in PATRAN installation directory. Previously I was accesing it from working directory.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Arthur Hickson over 8 years ago

Yes, depending on how you start Patran the working directory may not be what you think it is. If running from an icon then setting the "Start in:" value will control that.

I always add my libraries after explicitly setting the path to where they are with a !!PATH so for this test I have

!!PATH ADD D:\myfoldertree\ajh_multifile_select\x64

!!LIB ADD ajh_multifile_select.plb

where the folder x64 contains the plb,

As long as Patran can see the PLB it shouldn't matter where it is.

you can check the folders in the PATH list with the directive:

!!PATH

and similarly the plbs that Patran is currently using can be shown with

!!LIB

to show the functions inside a plb you can list them with a command like:

!!LIB list ajh_multifile_select.plb

this also shows Patran can find and read the plb.

PS If the plb is in Patran's start in working directory then it would be found, but better to explicitly add the folder it is in to the PATH list.
