PATRAN Fringe color modification

I am plotting my custom results using elemental format in PATRAN and fringe plots are created. Normally lowest value shall be in Blue color and highest value shall be in red color. Is there any option to reverse the color contour to have red for lowest value?

0 Hrishikesh Phadke over 8 years ago

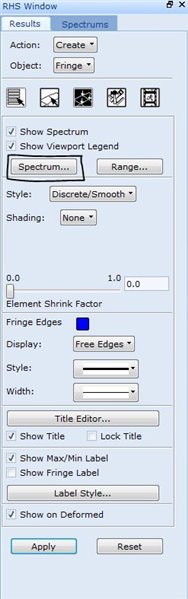

Inside Fringe Plot

Click on Spectrum

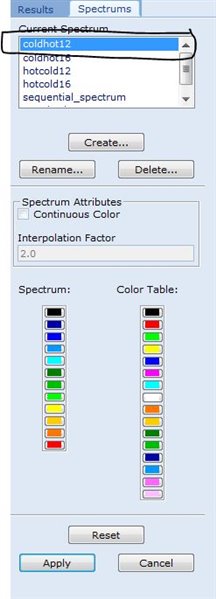

Then Switch to Coldhot12 instead of Hotcold12.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Arthur Hickson over 8 years ago

As well as that simple switch, you might want to make a spectrum that is purely red to blue.

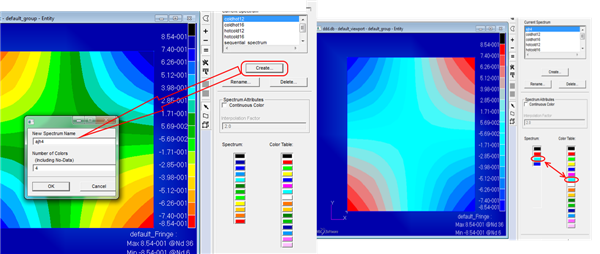

On the spectrum form use the create button, to make a new 4 color spectrum. Then change the colors in this by clicking one of the spectrum colors and then picking on the desired color from the Color Table. In the image I selected Red, Cyan and Blue.

Note that the Range (which you can define with as may levels as you like) will intepolate the colors for each range level using the Spectrum. (the top color is used for unassigned values)

Now you can get very complex in your colors and ranges.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Boobalan over 8 years ago

Thanks Arthur for your inputs...
