If you ever find that you can't open existing database files or create new ones in Patran, try the following:
-
Create a New Shortcut:
-
Copy the MSC Patran icon from the desktop.
-
Paste it into a directory/folder you have access to, such as
C:\test.
-
-

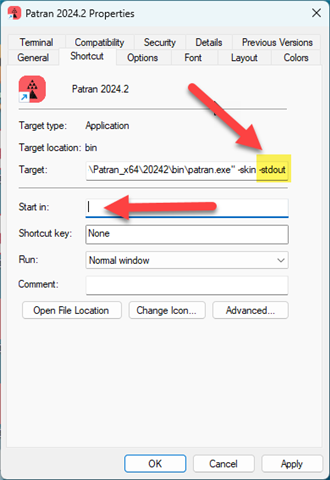

Modify Shortcut Properties:
-
Right-click on the copied shortcut and select 'Properties'.
-
In the 'Start-in' box, remove any existing text.
-
Add
-stdoutto the 'Target' field. -
Click 'OK' and 'Apply'.
-
-
Launch Patran:
-
Double-click the modified shortcut to start Patran.
-
Attempt to open or create a new database.
-
-
Troubleshoot Further:
-
If the issue persists, capture a screenshot of the CMD window that the -stdout produced along with any other Patran messages for further analysis.
-
