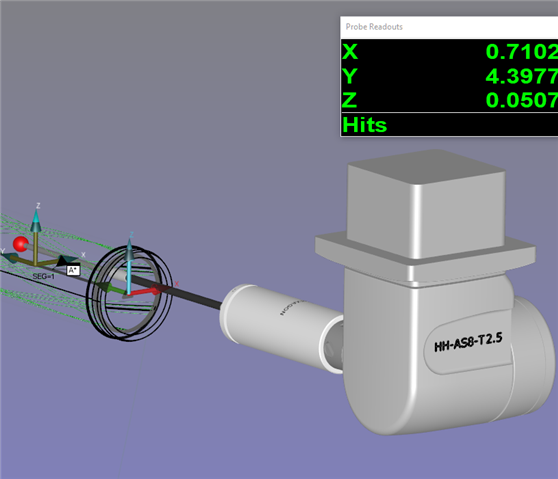

It's not available under my graphic Items and this would be helpful for visualizing TIP angles in offline mode to check for clearance. I have a HH-AS8-T2.5
I must be missing something. Why can't you see your probe head? Sorry, if I don't get your question. We only use the HH-AS8-T2.5 head.

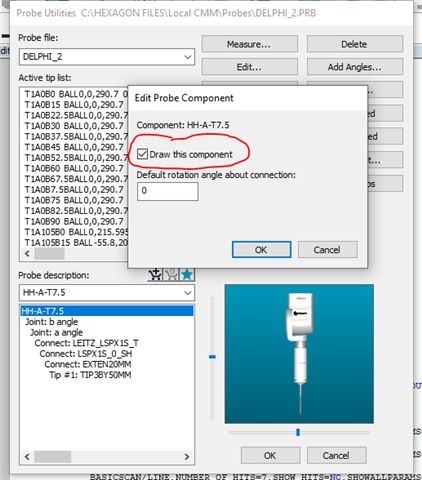

It's possible that the draw this component check box in the probe utility dialogue is disabled. Open probe utility dialogue and double click on the probe head you have then select the "Draw this component" check box. That should show your probe head in the graphic display window.
