Reposition of full vehicle assembly

Hi everybody, i want to reorient full vehicle assembly (MDI_demo_vehicle) in Adams 2023.4.1, i want to rotate vehicle (180,180,0).

I have tried all combination to use or not (Keep Current Road Position, Retain Parametrization) but after rotation vehicle is not able to make Static Equilibrium Analysis

I have tried rotation (180,0,), in that case i do not have problem with static equlibirum

also rotation (0,180,0) and then again rotation (0,180,0) broke model

Any idea what in model can be cause thi issue

Thanks in advance

Jozef

0 Alexis Del Rio over 1 year ago

Hi Jozef,

Why don't you reposition the road instead? this is very common with .crg

Thanks,

Alexis
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 jozef.bucha over 1 year ago

Hi Alexis,

Idea is to use Vehicle as FMU in Simulink and controls vehicle there. Simulink ( Vehicle Dynamics Blockset) uses CS oriented in such way that X goes in vehicle direction, Z goes down.

I wanted to set location and orientation of multiple vehicles in Simulink as Fmus and Reposition feauture in Adams was looking interesting.

Jozef
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Alexis Del Rio over 1 year ago

Hi Jozef,

Instead of rotating the ACar ref marker, can you generate a new marker in ACar at the right place with the Simulink orientation? then match the Acar ref marker position to that newly Simulink marker, but maintaining the ACar orientation.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 jozef.bucha over 1 year ago

Thank Alexis, I will try

Jozef
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Rishikesh Mokashi over 1 year ago

Hi Jozef,

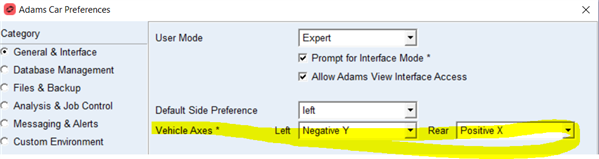

Would changing the vehicle orientation using the settings below help?

In older versions this was accomplished using below variables in the CFG file:

Regards,

Rishi
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 jozef.bucha over 1 year ago

Hi Rishi,

Thanks, changing values in ACar preferences was working.

Regards,

Jozef
