"request activity" for damper and bumstop doesent match?

Hello ,

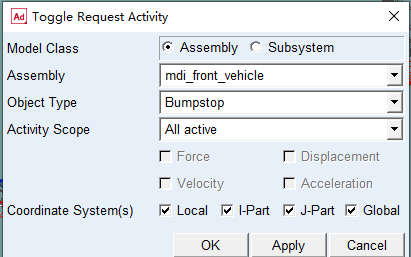

funtion "request activity" can get request wrt-I and wrt-J. But for damper and bumpstop, the I marker and J marker are the same, which doesnt match what we want. Ohterweise, for bushing, spring, rebound are logical in the mind. So , is my thouht wrong?

0 Henrik.Skovbjerg over 2 years ago

Getting the force on the I-marker is the inverse of getting the force on the J-marker. It is just a matter of which end of the force element you watch.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Alexis Del Rio over 2 years ago

the reference markers are different, one is the upper_strut and the other the upright
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 zhenhui xu over 2 years ago

Hi Alex and Henrik

Thanks for you feedback.

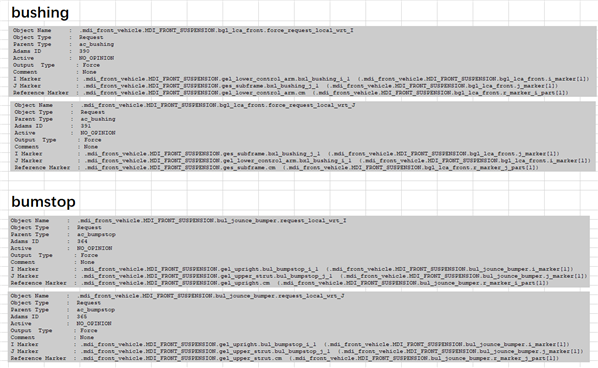

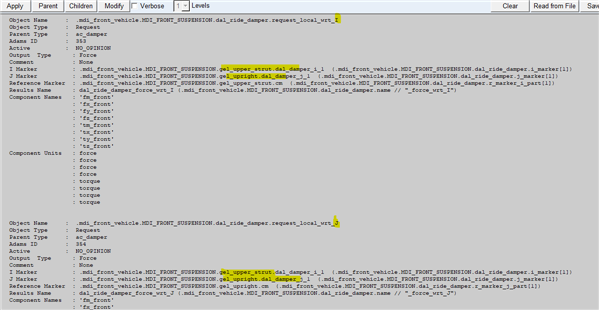

In order to explain more clear from me, i attach the comprasion between bushing and bumpstop.

Please look at the difference about marker order for wrt_I and wrt_J both entries in the picture.

For example, if people was interested in request from I part. Then the I_marker should be imarker, J_marker shuold be jmarker, rmarker should be located in I part.

If people was interested in reqeust from Jpart. Then the I_marker should be jmarker, J_marker should be imarker, the rmarker should be located in J part.

It was what we want for bushing/spring/rebound entities. But it was not what we want for damper/bumpstop entities in version 2021.04. And it should be.

Is there anything wrong from my thought?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Alexis Del Rio over 2 years ago

Hi,

Are you saying that the bumpstop I and J should swap in the wrt_J case?

To me the bumpstop protects upper_strut/body... from the upright impacts and not the other way around.

In any cases these are demo models and you may modify them to suit your needs if required.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 zhenhui xu over 2 years ago

Yes. I think the bumpstop I and J should be swap in the wrt_J case. Otherweise the component force direction is wrong, if i am interested in wrt_J for bumpstop and damper.

Alle the request was not modifyed by myself, it comes from tools-> request-> reqeust acitivity, automaticlly.
