Possibility to connect two nodes (or node groups) with a linear thermal conductance GL

I started recently to use Marc for thermal analysis in vacuum. I normally model lumped thermal networks with softwares like Thermica / Esatan, where I have a lot to do with simple conductors. I would like to know if I can connect two nodes (or node groups) with a conductance. It would be particularly useful for example, when I already know the value of a bolt conductance and I don't need to model it in Marc. In the example of the attached picture I modeled the bolt.

Thank you

Attached Files (1)

0 Kiranraj Shetty over 7 years ago

Hi Bruno,

You can define thermal contact , when the bodies are in contact i.e within the contact toelrance, there would be conduction. There is also a "near contact " option to model convection & radiation.

You can use either touching or Glue contact.

Refer to chapter e080 - Thermal Contact Analysis in a Pipe from Marc_UG

Regards,

Kiran

Kiranraj Shetty

MSC Tech Support
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 giordano.bruno over 7 years ago

Dear Kiranraj,

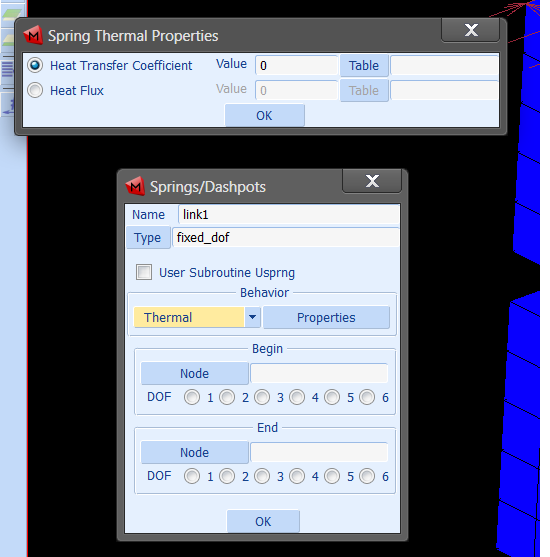

I think I found what I was looking for. The springs can be used also with a "Thermal Behaviour", by specifying a heat transfer coefficient:

Kind regards
