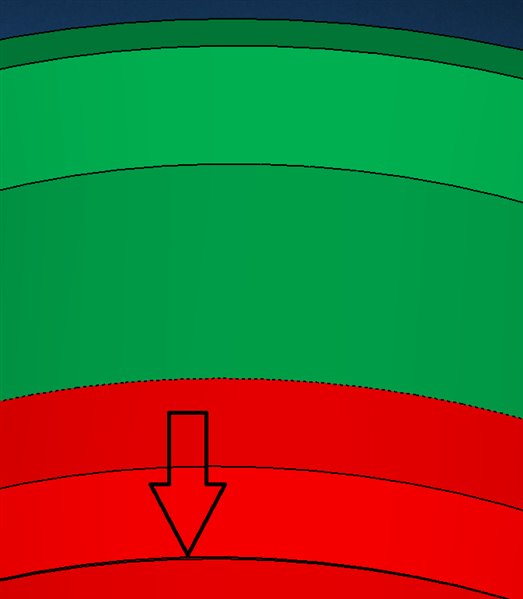

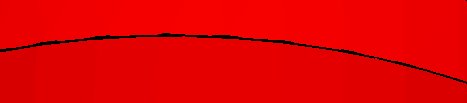

I have pipe to pipe model but its tight fit. when i subrtract two model i get a shape like below. how can fix this situation to do hex mesh.

cagri.kirt over 5 years ago

Here is the model. So that you can try

Attached Files (2)

pipe.mp4

0 karlR over 5 years ago

attached, there is a small face in the contact region between the solids. If you delete it and close the gap with edge drag a hexmesh is possible with axial splits. Check the "split" surfaces in the attached model.

Attached Files (1)

Part 1.x_t.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 cagri.kirt over 5 years ago

Thanks Alot
