SCAN STRIPS and color maps

Any takers?  Are there already threads covering this....provide a link part?  I can't believe no one knows this answer

I believe there may be threads related to Point color maps. Have you looked in the help documentation here?

https://docs.hexagonmi.com/pcdmis/2022.2/en/helpcenter/mergedProjects/laser/Point_Colormap.htm

I have not but I will now!  Thank you!

Know anything about the scan strips??

I just realized after I shared that help file with you, the first thing I would check is that show/hide color map section and try that.

Are the scan strips you're talking about the generated points from the laser scan? The ones that are by default a kind of bluish color, but start pink while scanning? I forget if colormap takes priority over those scans, I believe it does. You can always try to right click in graphics display window and hide all features. It's been a while since I did a laser scan colormap.

Yes, gut their default color is black and they're all over the part.  I figured out how to change them white, but that's about it

To clarify: they're black after scanning is complete

SCN1       =FEAT/SCAN,PERIMETER,NUMBER OF HITS=240,SHOW HITS=NO,SHOWALLPARAMS=NO
            MEAS/SCAN
              BASICSCAN/PERIMETER,NUMBER OF HITS=240,SHOW HITS=NO,SHOWALLPARAMS=NO
              ENDSCAN
            ENDMEAS/
COP1       =COP/DATA,TOTAL SIZE=240,REDUCED SIZE=240,
            FINDNOMS=NO,REF=SCN1,,
COPPCOLORMAP1=COP/OPER,POINT COLORMAP,PLUS TOLERANCE=0,MINUS TOLERANCE=0,THICKNESS=0,MAX DISTANCE=0.0394,
            SHOW DOTS=YES,DOT SIZE=0.08,SHOW NEEDLES=NO,SHOW LABELS=NO,
            SIZE=240,REF=COP1,,

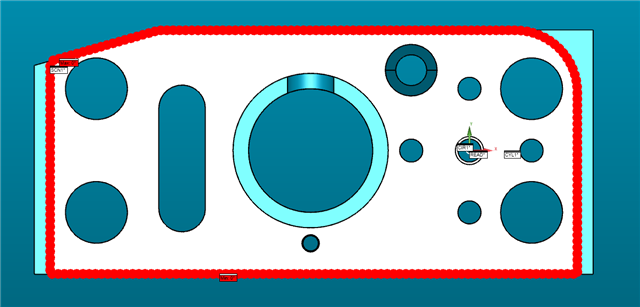

Just did a test colormap on the Hexblock, and put the tolerances to 0, and it went from green to red. Have you tried creating new colormaps? I don't have time to do an actual laser scan, but I can find an old program and use the data to see if it's different.

Thanks William, I think I have the color map function figured out!  However, the scan strips are still a problem that even show up on the report.  And hide all features only works until I move the cursor around the code a bit and then they're back.

https://photos.onedrive.com/photo/6A2B39AE5500561A!9326?view=all

Does your program use viewsets or have "RECALL/VIEWSET" commands? Also I cannot see image as it's asking me to login.

Sorry about the picture.  I have tried numerous times and different ways for it to show up but nothing works.

YES it does have the recall/viewset command....
