PC DMIS 2024.2 printing Data

Are you saying the Report Window values that are displayed within PC-DMIS do not match the physical printout? Can you share a screenshot of the report window if so?

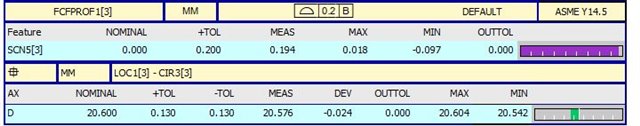

This is what the screen shows

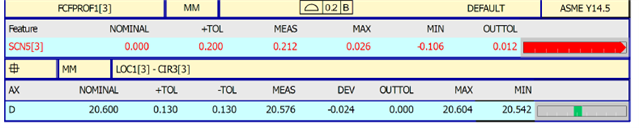

This is the print out

We have had that happen when there was a subprogram called before the dimensions (to park the machine in the home position) and then followed by a print command at the end of the program.

If you click the button for "View Last Execute Report Mode" surrounded by blue box in image above, does it change?

It changed to the rejected data

ArkansasBeeper-I do not have that in the program

Was this a program that ran all the way through without stopping? Or did it stop, then get continued with partial execution via CTRL+U / execute from Cursor

No, it ran all the way through

I cannot think of anything else at the moment except a partial execution, which would explain if the rejected data now matches the print out. When you change the toggle in the Report Window. Maybe Neil Challinor or Don Ruggieri  will have a better understanding here.

I do have it Looping, if that matters
