Trying to figure out how to clip a CAD model.
There is a donut on the end of my CAD model.
There is supposed to be a flat face, to measure a plane, with a I.D. chamfer, to measure a cone.
Can anyone tell me how to remove that donut?
Trying to figure out how to clip a CAD model.
There is a donut on the end of my CAD model.
There is supposed to be a flat face, to measure a plane, with a I.D. chamfer, to measure a cone.
Can anyone tell me how to remove that donut?

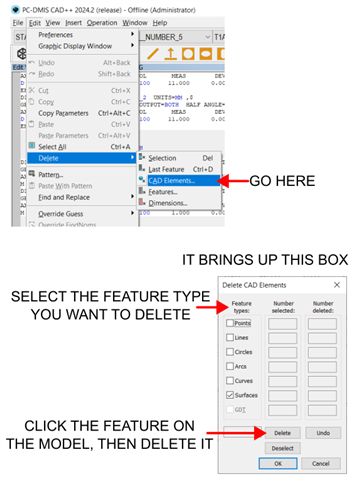

I know I'm late to the game on this one, but for future reference or for someone else's knowledge, if you have an errant artifact (anything on the model that shouldn't be there), you can permanently delete it as shown below. It could just be an assembly level you can turn off, but that's not always the case. If you're "positive" it's just something that shouldn't be there, follow these steps below to remove it.
