Alignment using only two datums

Looking at this I would suggest creating a plane on the A datum (looks like it's the counter bore of the hole) and levelling to that and setting it as your Z origin.
Then measure the 2 Ø8.8 to create a midpoint as others have mentioned and set that as x, y origin.
I would rotate between the two Ø8.8 bores and then rotate out the error so that the part is aligned with drawing.
To do this take the x and y between the two bores x=65 y=5.69 use trig to find the angle: Tan^-1(5.69/65) = 5.00283153° and rotate the alignment by this figure.

That worked flawlessly... now that have my MAN/DCC align is it good practice to then remeasure those datums with more hits to find any deviations during my dimensioning process....

One more thing as of right now anyway , I've for the most part taught myself how to read the FCF W, or W/O modifiers (MMC, LMC) unfortunately this is where I'm stuck, I know datum B is in some cases to be considered at mmc aka the most material smallest hole but how or what is best practice to measure, and dimension the call out let's say

ø6.5 ± 0.13
(2)plus.
|Position| 0.25(m)|A|B(m)|

I had to use the word "Position" in place of the symbol.

Again, thanks for everyone input!!!

MMC/LMC does not apply to datums AS datums, it is the same symbol but is maximum material boundary (MMB) (same for LMB).  It is the amount the PART can be shifted to try to get the part in tolerance (as if it were on a hard gage with straight pins in the holes, you can shift the part around on the pins).  The 0.25(M) is MMC, but the A|B(m)| is MMB.  Nice, eh?

MMC/LMC does not apply to datums AS datums, it is the same symbol but is maximum material boundary (MMB) (same for LMB).  It is the amount the PART can be shifted to try to get the part in tolerance (as if it were on a hard gage with straight pins in the holes, you can shift the part around on the pins).  The 0.25(M) is MMC, but the A|B(m)| is MMB.  Nice, eh?

I think I caught what you were throwing...SO what's the difference between the last EXAMPLE I asked about, And the call out FCF for datum B?

I know this probably day one material but idk if you noticed where I mentioned I'm basically learning as I go with the help of others such as yourself. my apologies for all this Q/A there is so much information to take into account along with rules and best practices etc. so I really appreciate your patience with this

for the B callout (0.13(M)), it is MMC but for the FCF that uses B (Datum Reference Frame or DRF), it is MMB.  Yeah, 'Oh, this is confusing people, so let's change the definitions but let's use the same symbol because we don't want to create a new symbol', that's how they work.

I think I caught what you were throwing...SO what's the difference between the last EXAMPLE I asked about, And the call out FCF for datum B?

I know this probably day one material but idk if you noticed where I mentioned I'm basically learning as I go with the help of others such as yourself. my apologies for all this Q/A there is so much information to take into account along with rules and best practices etc. so I really appreciate your patience with this

Guess Who??? lol so I finished measuring the port and I'm now working on the starboard side of this part my question once I measure everything, 1. Do I need to make an alignment the part per the Gd&T call outs. And 2. will you break down how I'd go about doing this so I get the correct numbers. I've attempted this with other parts and I've not had much luck when it comes to  MMC and all that because I don't quite understand how to go about using the software to give me the right numbers. A good example of this is that I don't know when it would be better to use a constructed feature vs and auto or measured feature in order to get the right dimension??? I really appreciate any help I can get thank you in advance and if I need to, I can screenshot some of my code if that would help clear up any confusion in the multiple questions I just asked.

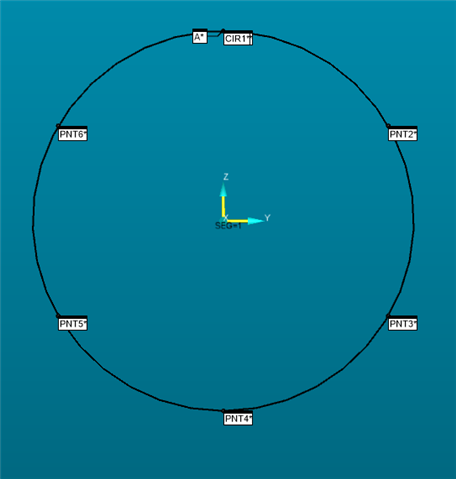

If you are using GeoTol for your GD&T callouts, you should not need to align to the datum structure from the FCF. If you use GeoTol you'll see the "alignment" XYZ origin it is using with a Yellow line and blue arrow point if your cursor is at that dimension command in the edit window.

Although, from what I can see of your print, you probably are already mostly aligned to the part if you followed the datum structure.

If you are using Legacy Dimensioning for them, yes you will have to be correctly aligned. I'd suggest like others have said to use GeoTol if you aren't already

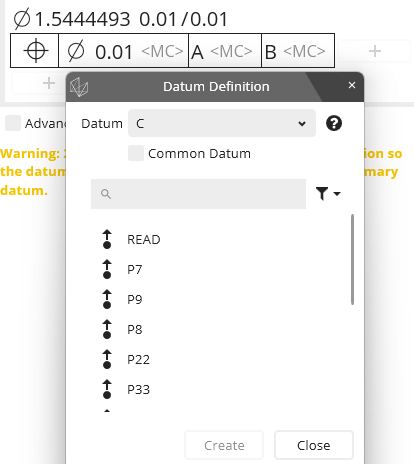

I'm not sure if anyone mentioned this to you but when using GeoTol you have to define your datums.  With Legacy your alignment is made up of your datum structure but with GeoTol you need to go to insert-->dimension-->define datums.  From there, select what features you want to act as your datums.  After that, you can start calling out your characteristics.  Just remember that in order to use the MMB for datum references, their sizes need to be called out before the considered features that are referencing those datums.

You can also begin typing "datdef" in the Edit Window, and F9 that command, or just type in the ID after the =

Or when you are in the GeoTol Window, if you click the + button without any datums defined, you can define them right there

DATDEF/A,FEATURES=CIR1,,
DATDEF/B,FEATURES=CIR3,,

can you elaborate on the MMB using gel tol command a little more. I'm sorry I'm struggling the terminology what does it mean when you said to make sure that the sizes be called out before I reference the datums?? my apologies if this is frustrating, I am beyond greatful for everyone who's taken the time to walk through this with me.

Before calling out the position of the 6.5 dia. features, first call out the size(s) of datum B.  As the datum B diameters grow, more datum shift will be allowed and the software needs to know how much datum shift there is by considering the actual sizes of the datum B pattern features.  In WilliamL 's screen shot above, you'll see that beside datum B, there's <MC>.  Click on that to apply datum B's MMB.

You can report out the sizes of the datum B features by using the location command (just diameter), the size command or by calling out the position with the MMC modifier, which is probably easiest and makes the most sense because that's an actual characteristic on your drawing.  The MMC modifier makes it so the sizes will be reported and considered because they will affect its own positional tolerance.
