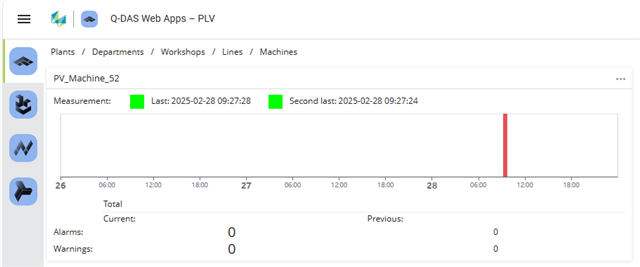

Q-DAS PLV (Plant Viewer) can also visualize alarms generated in Q-DAS procella.
To visualize the generated alarms in PLV, the following settings must be made in Q-DAS procella.
General settings

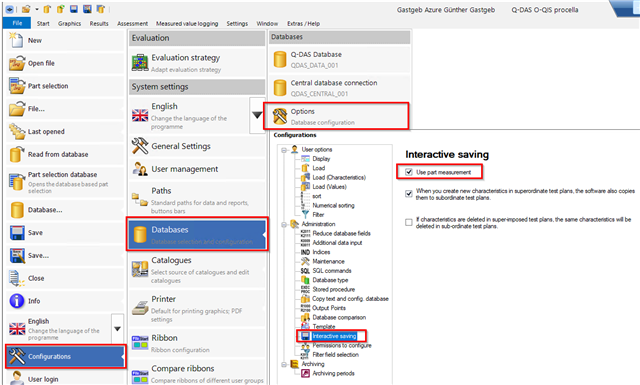

Option "use part measurement" must be activated in the database used by both Q-DAS procella and PLV.

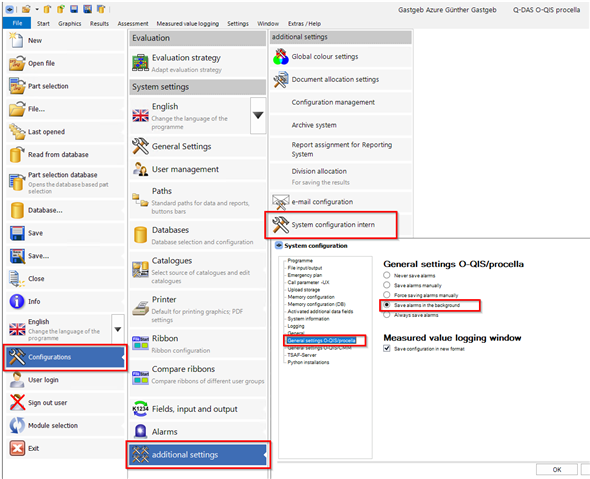

Q-DAS procella alarms must be automatically saved in the background.

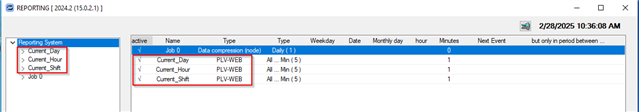

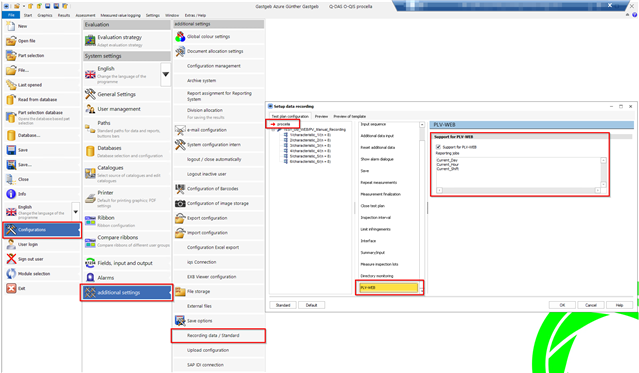

The compact jobs for PLV, stored in the Q-DAS Reporting System, must be added on Q-DAS procella default level.
Settings per inspection plan
The test plan used must be loaded from the database.
Part measurement must be enabled.

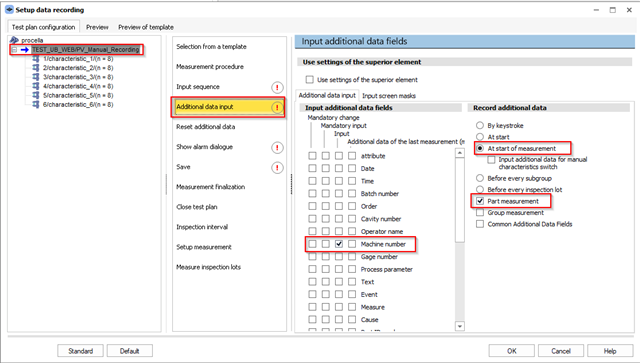

The additional data entry for K0010 (machine) must be enabled.

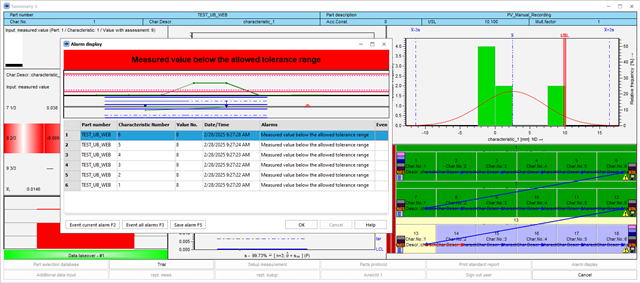

The alarm dialog must be displayed after each part measurement.

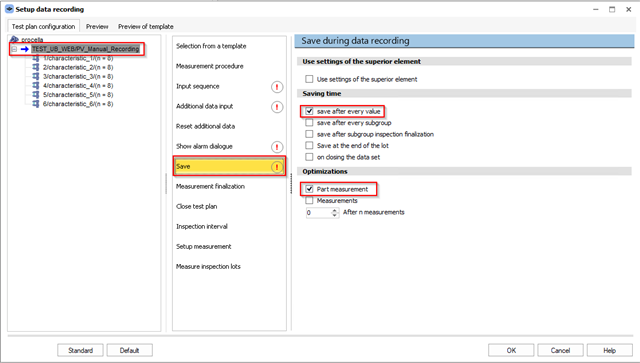

Automatic saving after each part measurement must be enabled.

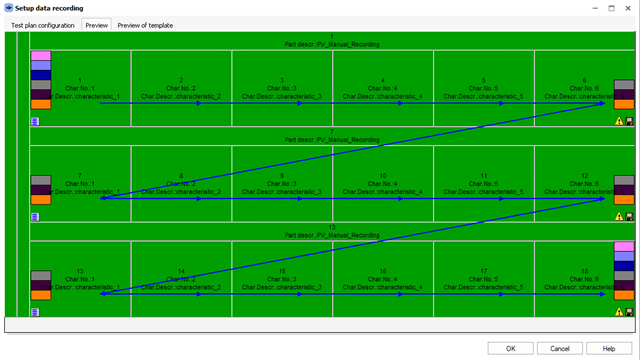

The test plan for correct PLV recording looks like this at the end:
