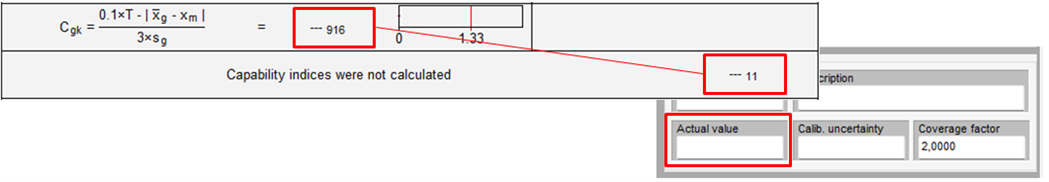

The codes for C-Values occurs as an index next to the value, or instead of the value:
Codes in qs-STAT
| Code |
Description |
| 15 |

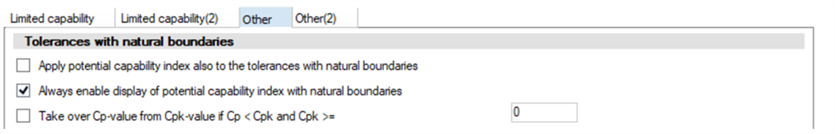

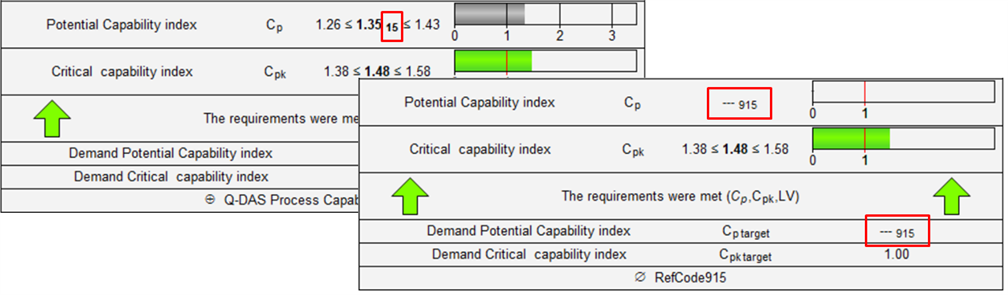

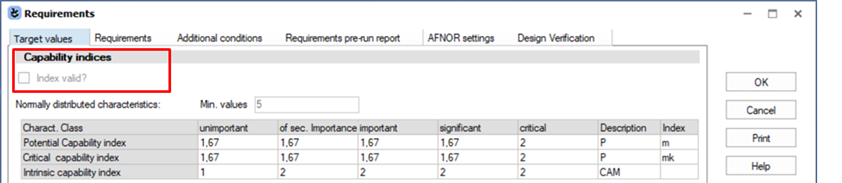

The code 15 comes up, when the calculated capability is just for information, and not for the overall result. This is the reason for example with single sided characteristics with a natural boundary, when the Capability-index is defined in the strategy as "information only"
Note: A true position is not treated as a "characteristic with natural boundaries" and has its own rules. |
| 915 |

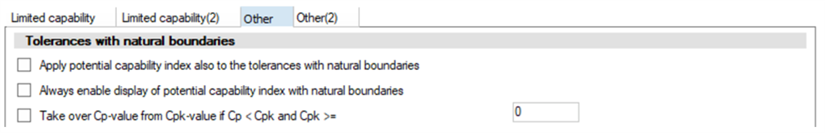

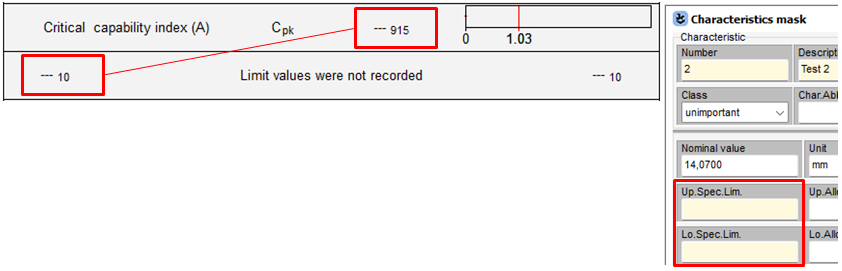

The code 915 is coming up, when the result should not be given out. This is the reason for example with single sided characteristics with a natural boundary, when the Capability-index is defined in the strategy as "to be hidden"
Note: A true position is not treated as a "characteristic with natural boundaries" and has its own rules. |
Codes in solara.MP
| Code |
Description |
| 28 |

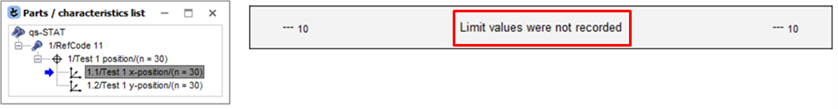

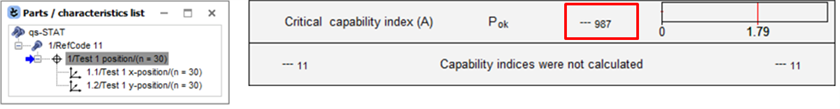

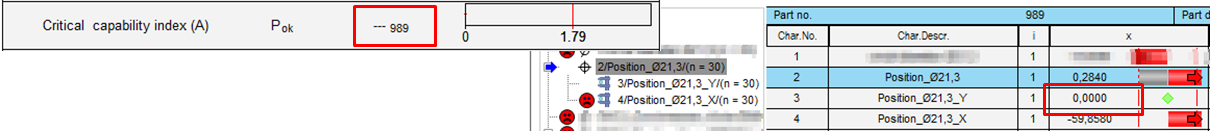

Code “28” indicates that for positional tolerances, the superordinate characteristics cannot be assessed in this type of study.
For the subordinate characteristics, measured values of x- and y-coordinate, the calculation is provided.
The evaluation of "multivariate characteristics", and this includes positional tolerances, is only possible with Type-1 study. The why is explained in a separate topic. Link to: True Positions in MSA (and VDA5) |
