The text output of the “Capability” contains various information and notes

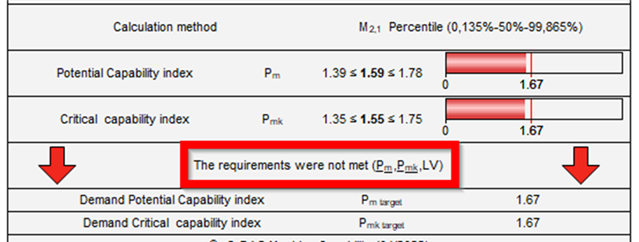

After the text output, the requirements that are set as requirements for this characteristic in the strategy are listed in brackets. The underlined elements are those where the requirements are not met.
Limited capabilities

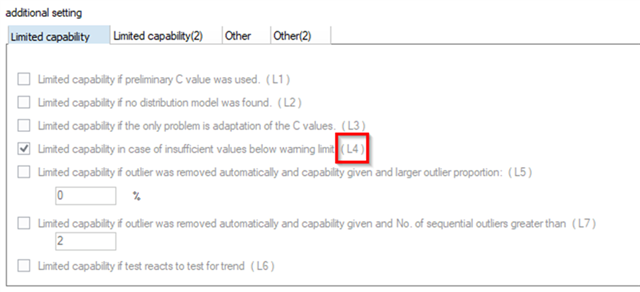

In the evaluation strategy, certain conditions can be activated if the actual requirements are mathematically fulfilled, but for safety reasons, no capability is to be output, only a “limited capability”. As an example, since this is often used: a limited capability when there are too few measured values.

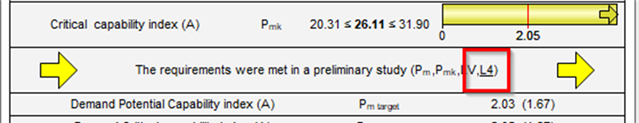

The corresponding code is then shown in brackets in the text:
List of L-conditions
a more detailed description can be found in the manual for the startegy.
Code | Description | Remark |
L1 | Conditional capability if provisional C-value was used | |
L2 | Conditional capability if no distribution model found | |
L3 | Conditional capability when the only problem is adjusting the C-values | |
L4 | Conditional capability if warning limit for too few values is undershot | |
L5 | Conditional capability if outliers are automatically removed and outlier proportion is larger | |
L6 | Conditional capability if test responds to trend | |
L7 | Conditional capability if outliers automatically removed and number of consecutive outliers greater than | |
L8 | Conditional capability if mixed distribution was found as distribution model | |
L9 | Conditional capability when H0 of the test for dispersion has been discarded | |
L10 | Conditional caability when a subgroup average is violated |
